Specifications

Model	Cutting Length mm	Cutting Speed p/min	Max.Cutting Width mm	Max.Cutting Angle mm	Sound Frequency Hz	Recommended Pressure Mpa	Voltage V	Power kw	Power kw	Weight kg	Stand Package Size L.W.H(mm)

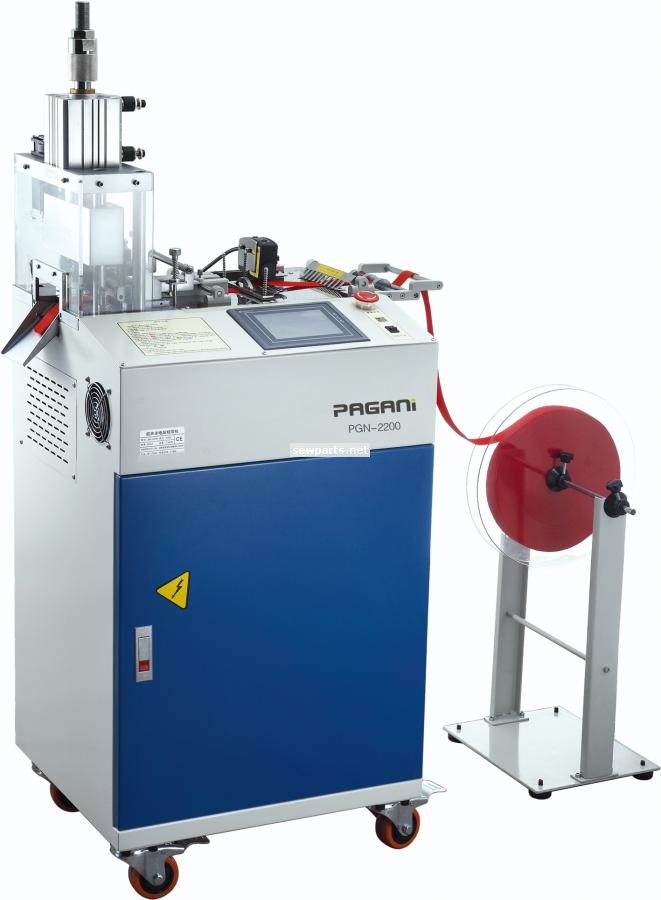

PGN-2200	25-99999	120	100	35	20K	0.4-0.7	220	1.5	1.7	152	700x610x1450

Product Detail

Ultrasonic cutting, large touch sreen, sharing flateform. Varity shapes.
Special features:
Ultrasonic cutting: Balde is not black, ghost edge and feel comortable. The powerful transducer cut faster, quiter.
Accurate: The accurate cut of lables by using optronics sensor.
Varity shapes: The special technique of sharing flateform can carry variety shapes of knife molds and replace mold quickly.
Multi-angle: By use of multi-angle cut function of straight knife, can cut many shapes as parallelogram, rhombic, trapezoid, etc.
Computerised: Automatic work and stop, the special fault self-diagnosis. Display directly the problems. Clear fault zone.
Storage: Memery all cuttings for your convenience.
Apllication
Suitable for Wovean Belts, Velcro, Shoelace, Zipper, Labels, And Kinds of Leather Belts. etc.

Product Illustrations

Blade made of high quality steel imports, Long life; Unique anti-static devices; Multi cutter platform.	The photoelectric sensor can accurat- ely capture the trademark cutting line, thus the preci- se control of each of the effective cutting length.	LCD Operation Panel Display in English and Chinese, easy to learn and easy to operate, convenient short-cut keys Set compensation func- tion;more precisely, Original the precise functional, accurate to 4 decimal; The other easy to use features in the operating panel.	Equipped with electric shock devices, when the user opens the door, Will automatica- lly cut off power to ensure safety.	Feed auto-sensing port, It stops automatically if materials run out during operation.
