SPECIFICATIONS
MODEL CUTTING LENGTH
mm
Max. CUTTING WIDTH
mm
CUTTING SPEED
p/min
WEIGHT
kg
VOLTAGE FREOUENCY
V/Hz
POWER
KW
Max. BLADE TEMP
°C
CUTTING ANGLE PACKAGE SIZE
(L.W.H)mm
LOADING RATE
PIC
PGN-120HLR 15-99999 95 120 21.3/26 110V/220V
50/60
0.35 180 - 410×525×430 1

You can cut label tapes automatically and neatly.

Special features:
High speed: It can cut 100 cut per minute. (50mm long)
Accuracy: Cut-length is accurate cwing to a stepping motor
Cutting type: Melting & cutting by hot knife, label is cut neatly without fraying but not for heavy materials and installed with anti-static electricity device.
Automatic operation: It works automatically only by setting length and quantity
Automatic stopper: It stops automatically if materials run out during operation.
Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on.




    Next:Auto-hot tape cutter with auto-feeding machine Previous:Auto-label cold cutter " /> PGN-120HLR Auto-Label Cutter (Cold & Hot)
SEWING SPARE PARTS
SEWING ACCESSORIES
SEWING MACHINE LAMP
TABLE STAND
CLUTCH MOTOR
    SERVO MOTOR
    BEFORE SEWING EQUIPMENT
    SEWING EQUIPMENT
    AFTER SEWING EQUIPMENT
    LEATHER BAGS EQUIPMENT
    CLOSER EQUIPMENT
    EMBROIDERY EQUIPMENT
    EMBROIDERY EQUIPMENT ACCESSORIES
    HOUSEHOLD SEWING MACHINE
    SEWING MACHINE SPARE PARTS
    COAL MINING PRODUCTS
    AUTOMATIC MASK PRODUCTION LINE

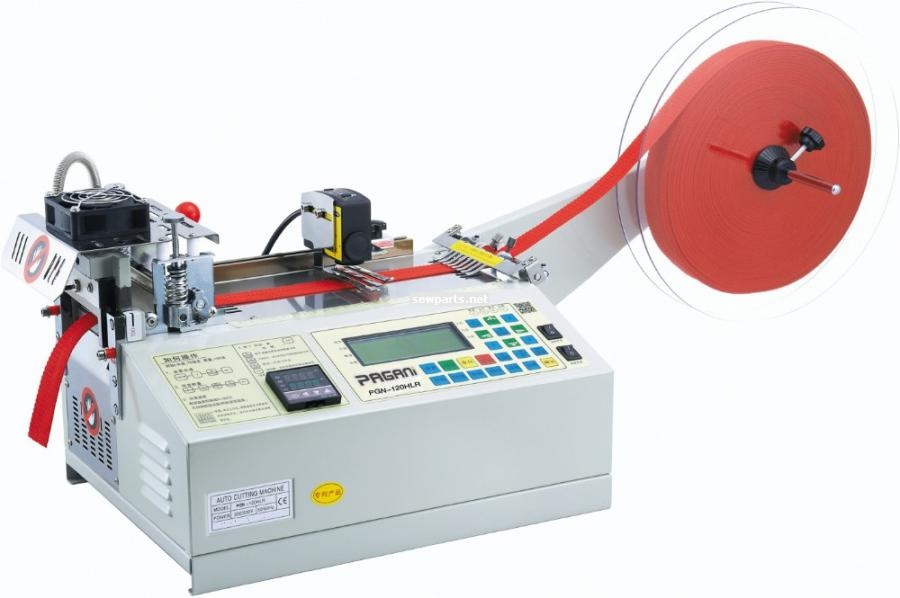

    PGN-120HLR Auto-Label Cutter (Cold & Hot)
