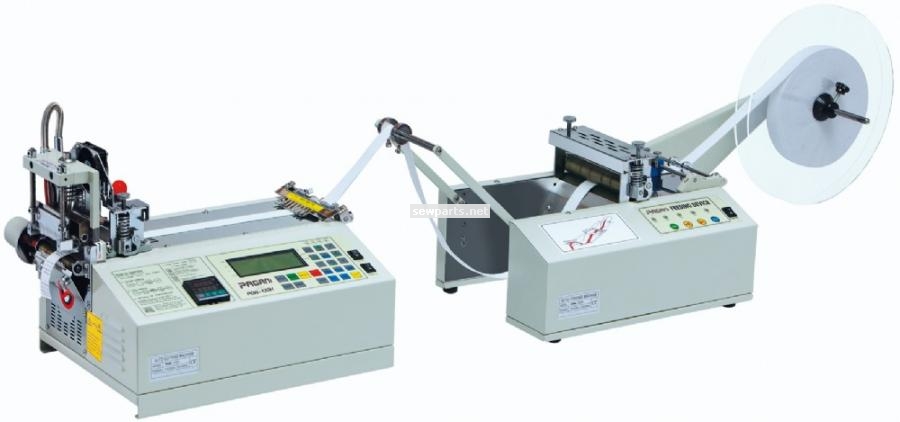

PGN-120H/300M Hot Knife Cutter With Auto-Feeding
Product pdescription:
SPECIFICATIONS
MODEL | FEEDING SPEED mm |
FEEDING WIDTH mm |
MOTOR SPEED r/min |
VOLTAGE FREOUENCY V/Hz |
POWER KW |
PACKAGE SIZE (L.W.H)mm |
LOADING RATE PIC |
PGN-120H/300M | auto | 140 | 1500 | 110V/220V 50/60 |
0.06 | 410×525×430 | 1 |
You can cut strip tapes automatically and neatly.
Special features:
High speed: It can cut 100~120 cut per minute. (50mm long)
Accuracy: Cut-length is accurate cwing to a stepping motor
Cutting type: Melting & cutting by hot knife, tapes are cut neatly without fraying and installed with anti-static electricity device.
Automatic operation: It works automatically only by setting length and quantity
Automatic stopper: It stops automatically if materials run out during operation.
Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on.
Auto-feeding machine: for multi-purpose pre-feeding, especially for heavier and elastic material, it is applicable for 120series auto-cutting machine. Pre-feeding device to keep a constant tension of elastic band for correct length.
Apllication
Woven tapesstrip tapes, ribbon tape, bag band, webbing, etc.
