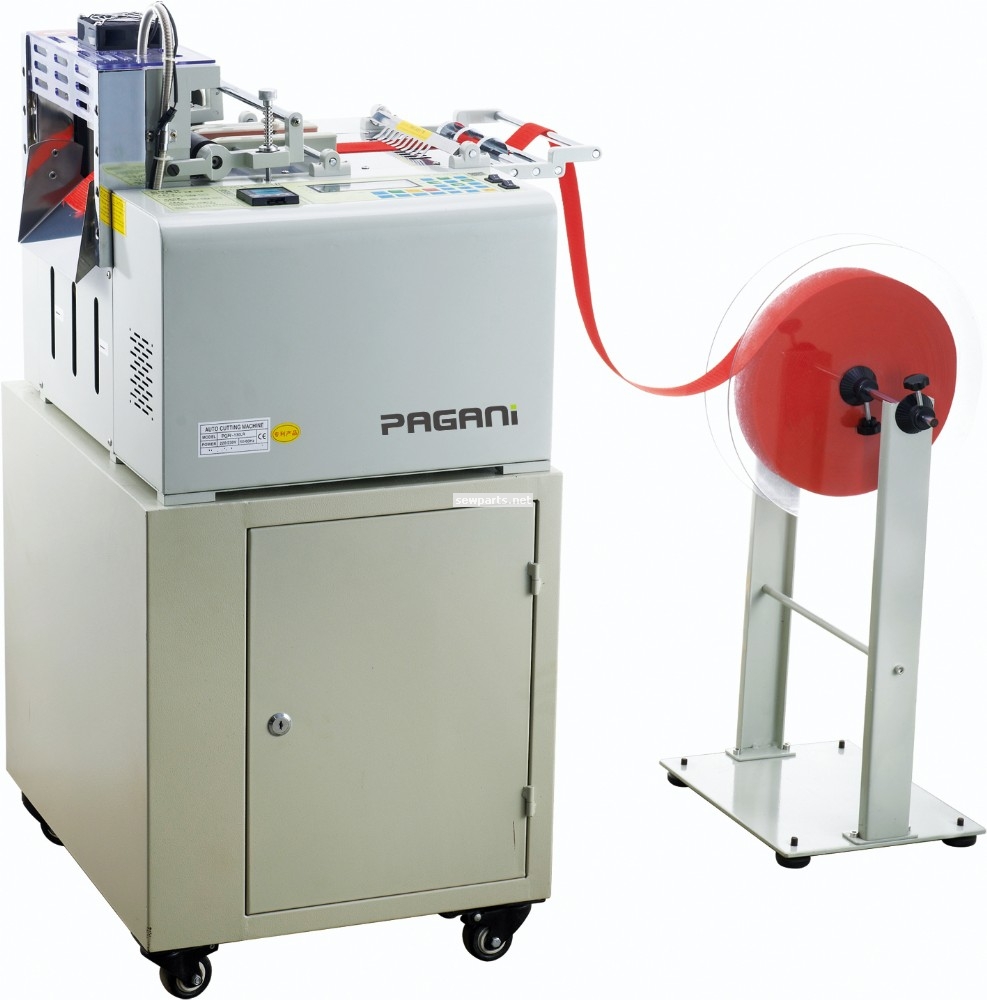

PGN-130LR Heavy- duty Knife Cutter

US $ 4293.10 / Piece

Price:

Pieces

Quantity:

US $4293.10

Total Cost:

Buyer Protection

-Guaranteed refunds

-Escrow protection on every order

-Secure payments

See larger image See larger image See larger image

Item Description

Description

Product Name: PGN-130LR Heavy- duty Knife Cutter
Item Code:
Category:
Automatic Cutting Machine
To See this Categories
Brand:
PAGANI
Product Area: China
Manufacturer:
Machine Model: PGN-130LR
Viewed: 99

SPECIFICATIONS

MODEL	CUTTING LENGTH mm	Max. CUTTING WIDTH mm	CUTTING SPEED p/min	WEIGHT kg	VOLTAGE FREOUENCY V/Hz	POWER KW	Max. BLADE TEMP °C	CUTTING ANGLE	PACKAGE SIZE (L.W.H)mm	LOADING RATE PIC
PGN-130LR	1-99999	195	80~100	95/75	110V/220V 50/60	1.08	300	-	655×590×540	1

STAND PACKAGE SIZE (L.W.H)mm	WEIGHT kg	LOADING RATE PIC
550×445×465	17	1

You can cut strip tapes automatically and neatly.

Special features:
High speed: It can cut 80~100 cut per minute. (50mm long)
Accuracy: Cut-length is accurate cwing to a stepping motor
Cutting type: Melting & cutting by hot knife, woven label is cut neatly without fraying but not for heavy

materials and installed with anti-static electricity device.
Automatic operation: It works automatically only by setting length and quantity
Automatic stopper: It stops automatically if materials run out during operation.
Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on.

Apllication
strip tapes, ribbon tape, bag band small webbing, etc.

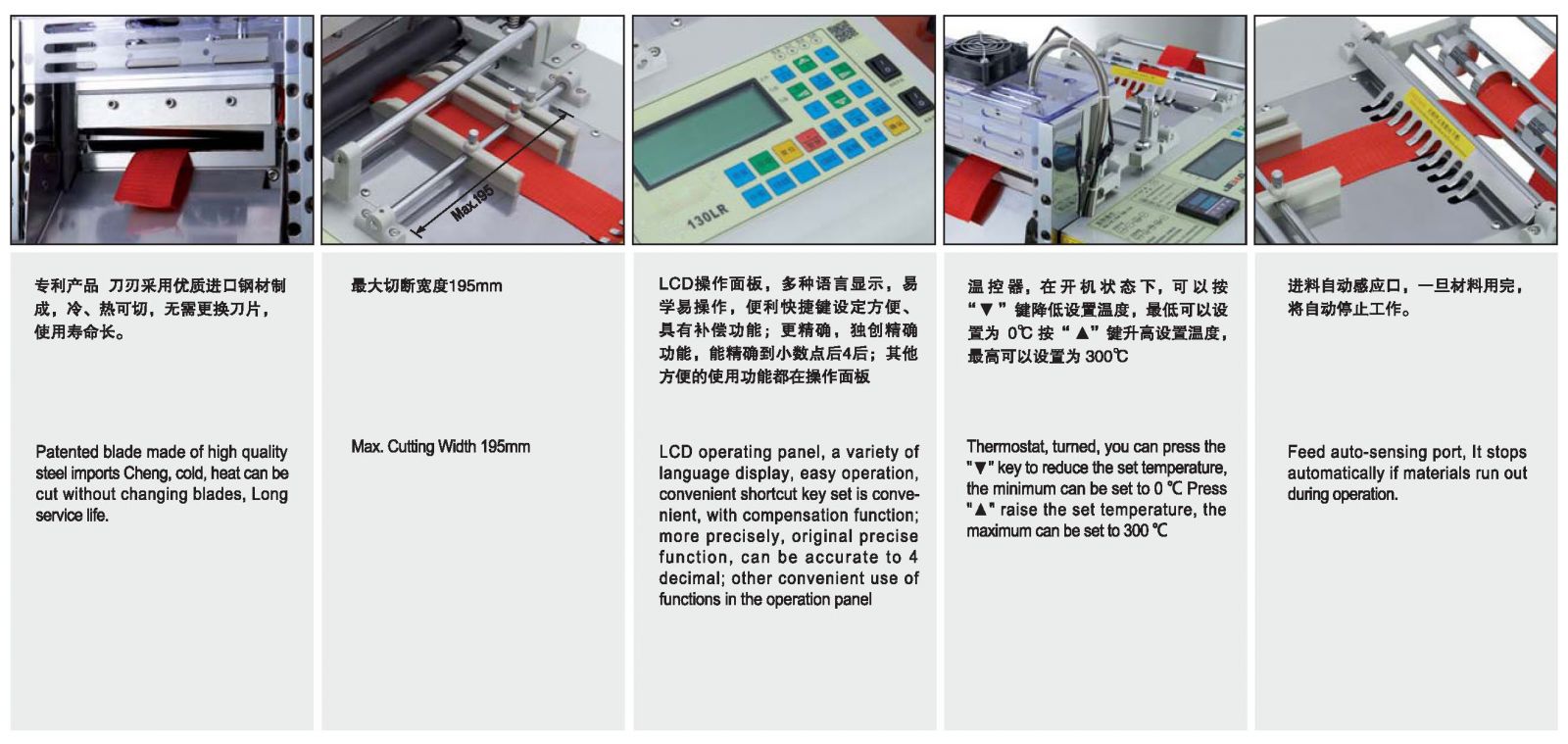

PRODUCT ILLUSTRATIONS

Next:Economic Hot Knife Cutter

Previous:Heavy-duty Cold Knife Cutter

Note: All product images and technical parameters of the station are for reference only, all with the physical products, if you have any questions, welcome to the customer service personnel detailed consultation.
