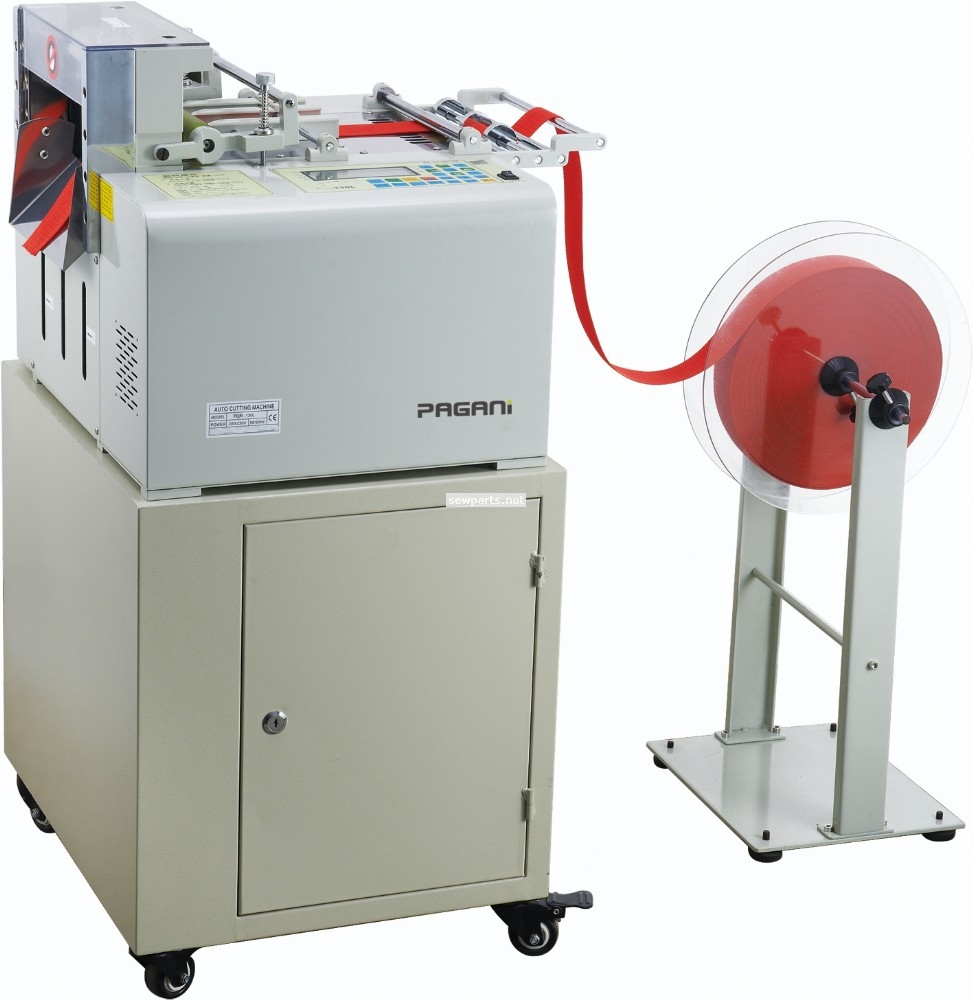

PGN-130L Heavy-duty Cold Knife Cutter

US $ 3775.86 / Piece
Price:
Pieces
Quantity:
US $3775.86
Total Cost:

Buyer Protection

-Guaranteed refunds
-Escrow protection on every order
-Secure payments
  • Item Description

Description

  • Product Name: PGN-130L Heavy-duty Cold Knife Cutter
  • Item Code:
  • Category:

    Automatic Cutting Machine

    To See this Categories
  • Brand:

    PAGANI

  • Product Area: China
  • Manufacturer:
  • Machine Model: PGN-130L
  • Viewed: 85




SPECIFICATIONS
MODEL CUTTING LENGTH
mm		 Max. CUTTING WIDTH
mm		 CUTTING SPEED
p/min		 WEIGHT
kg		 VOLTAGE FREOUENCY
V/Hz		 POWER
KW		 Max. BLADE TEMP
°C		 CUTTING ANGLE PACKAGE SIZE
(L.W.H)mm		 LOADING RATE
PIC
PGN-130L 1-99999 200 80~100 95/75 110V/220V
50/60		 0.5 - - 650×590×540 1
STAND PACKAGE SIZE
(L.W.H)mm		 WEIGHT
kg		 LOADING RATE
PIC
550×445×465 17 1




You can cut strip tapes automatically and neatly.

Special features:
High speed: It can cut 80~100 cut per minute. (50mm long)
Accuracy: Cut-length is accurate cwing to a stepping motor
Cutting type: Melting & cutting by hot knife, installed with anti-static electricity device.
Automatic operation: It works automatically only by setting length and quantity
Automatic stopper: It stops automatically if materials run out during operation.
Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on.

Apllication
Woven Tapes, Strip Tapes, bag Band, etc. But no pure cotton materials.

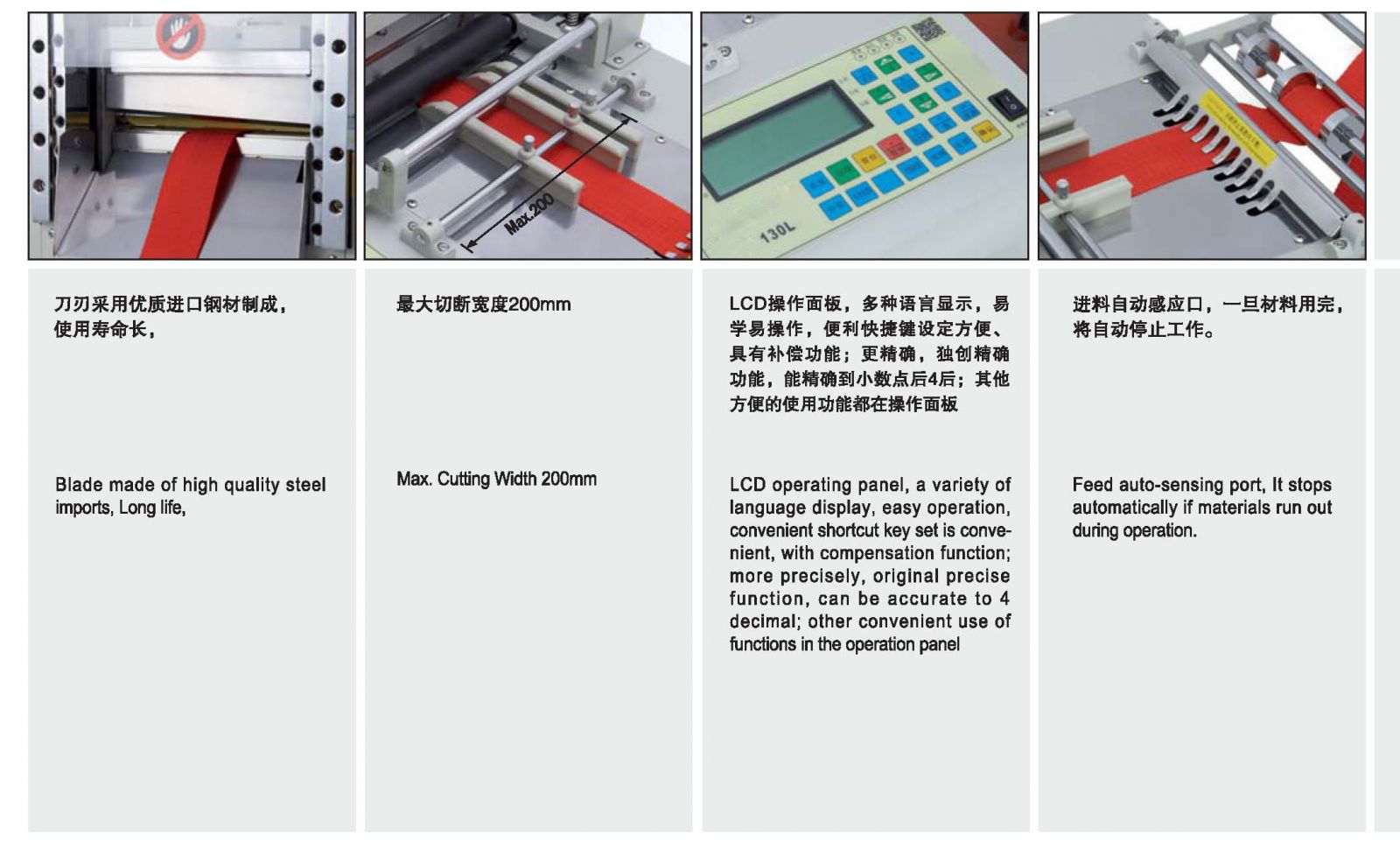

PRODUCT ILLUSTRATIONS









Next:Heavy-duty （Cool&Hot ）Knife Cutter
Previous:SERIES AUTO-SHARPENING CUTTING MACHINE
Note: All product images and technical parameters of the station are for reference only, all with the physical products, if you have any questions, welcome to the customer service personnel detailed consultation.
