| MODEL |
FEEDING SPEED
mm |
FEEDING WIDTH
mm |
MOTOR SPEED
r/min |
VOLTAGE FREOUENCY
V/Hz |
POWER
KW |
PACKAGE SIZE
(L.W.H)mm |
LOADING RATE
PIC |
| PGN-120H/300M |
auto |
140 |
1500 |
110V/220V
50/60 |
0.06 |
410×525×430 |
1 |

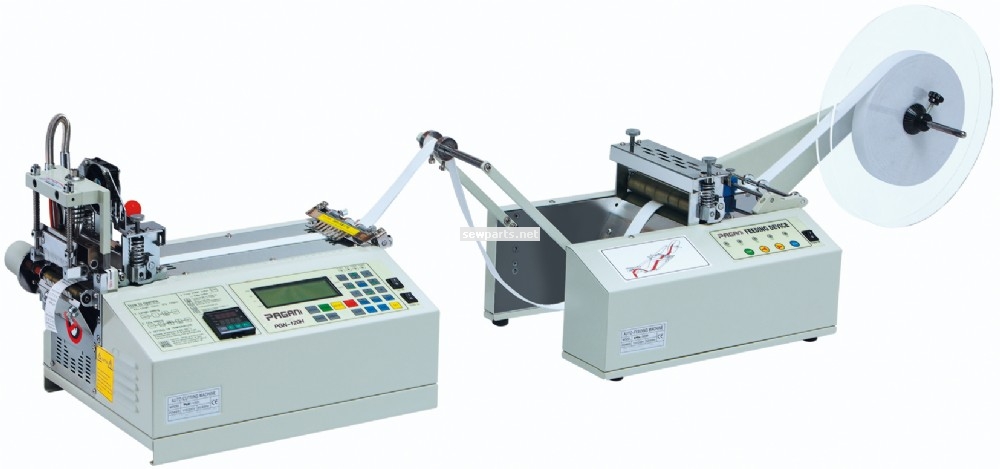

You can cut strip tapes automatically and neatly.
Special features:
High speed: It can cut 100~120 cut per minute. (50mm long)
Accuracy: Cut-length is accurate cwing to a stepping motor
Cutting type: Melting & cutting by hot knife, tapes are cut neatly without fraying and installed with anti-static electricity device.
Automatic operation: It works automatically only by setting length and quantity
Automatic stopper: It stops automatically if materials run out during operation.
Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on.
Auto-feeding machine: for multi-purpose pre-feeding, especially for heavier and elastic material, it is applicable for 120series auto-cutting machine. Pre-feeding device to keep a constant tension of elastic band for correct length.
Apllication
Woven tapesstrip tapes, ribbon tape, bag band, webbing, etc.
Note: All product images and technical parameters of the station are for reference only, all with the physical products, if you have any questions, welcome to the customer service personnel detailed consultation.
