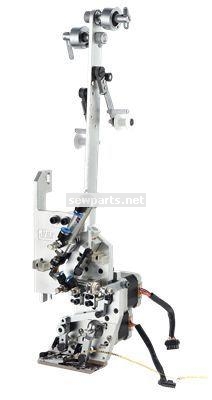

PGN-Y025 double sequin side device (small double shaft)

US $ 0.00 / Piece
Price:
Pieces
Quantity:
US $0.00
Total Cost:

Buyer Protection

-Guaranteed refunds
-Escrow protection on every order
-Secure payments
  • Item Description

Description

  • Product Name: PGN-Y025 double sequin side device (small double shaft)
  • Item Code:
  • Category:

    Sequin Device

    To See this Categories
  • Brand:

    PAGANI

  • Product Area:
  • Manufacturer:
  • Machine Model: PGN-Y025
  • Viewed: 79
model NO: JY-025

bottom plate : 335

pressure patti: clampping type

machine type: high speed (big head)

working way of cutter: cutter rodding

techinical parameters:

1: minumum space of sequin device:    110MM

2: distance for up and down:          25MM

3: specification of device:      A motor  3MM-7MM

                                 B motor  3MM-9MM

4: specification of overlapping embroidery

up: big sequin     down: small sequin

ATTN: the diameter of the overlapping sequin shall not be more than 2mm.

5: specification of crossing embroidery

all the specification can realize this function .

6:  embroidery speed:     3MM-5MM    1200RPM

                          7MM-9MM     800RPM

7: specification of stepping motor: 0.5A or 1A.

1A is recommended.

6: air pressure: 3kpa

Note: All product images and technical parameters of the station are for reference only, all with the physical products, if you have any questions, welcome to the customer service personnel detailed consultation.
