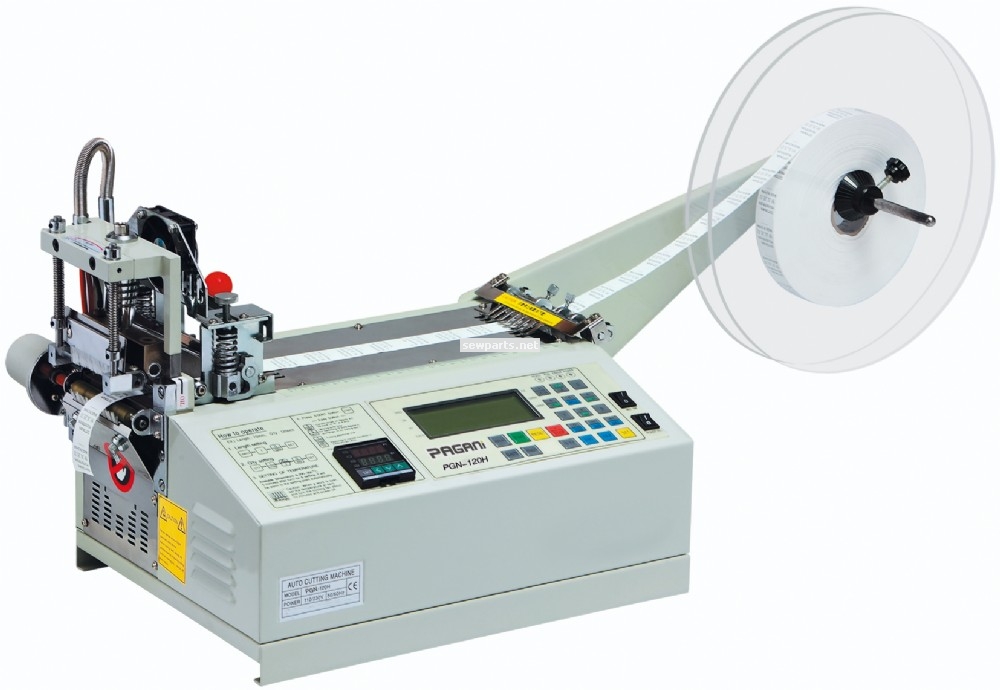

PGN-120H Hot Knife Cutter

US $ 1882.76 / Piece
Price:
Pieces
Quantity:
US $1882.76
Total Cost:

Buyer Protection

-Guaranteed refunds
-Escrow protection on every order
-Secure payments
  • Item Description

Description

  • Product Name: PGN-120H Hot Knife Cutter
  • Item Code:
  • Category:

    Automatic Cutting Machine

    To See this Categories
  • Brand:

    PAGANI

  • Product Area: China
  • Manufacturer:
  • Machine Model: PGN-120H
  • Viewed: 81



SPECIFICATIONS
MODEL CUTTING LENGTH
mm
Max. CUTTING WIDTH
mm
CUTTING SPEED
p/min
WEIGHT
kg
VOLTAGE FREOUENCY
V/Hz
POWER
KW
Max. BLADE TEMP
°C
CUTTING ANGLE PACKAGE SIZE
(L.W.H)mm
LOADING RATE
PIC
PGN-120H 20-99999 100 120 24/29 110V/220V
50/60
0.66 420 - 410×525×430 1

You can cut strip tapes automatically and neatly.

Special features:
High speed: It can cut 100~120 cut per minute. (50mm long)
Accuracy: Cut-length is accurate cwing to a stepping motor
Cutting type: Melting & cutting by hot knife, installed with anti-static electricity device.
Automatic operation: It works automatically only by setting length and quantity
Automatic stopper: It stops automatically if materials run out during operation.
Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on.

Apllication
strip tapes, ribbon tape, bag band small webbing, etc.
